Our Range Elements Have Been Used By The Major Appliance Manufacturers

– Setting A Standard For Quality

RANGE Elements

We are pleased to offer the most reliable heating elements at the best value available for the Home Appliance market including our line of surface range elements which provide the highest performing and safest solution on the market. Our elements are safety certified with the following agencies: UL File E65554 and CSA file LR48791.

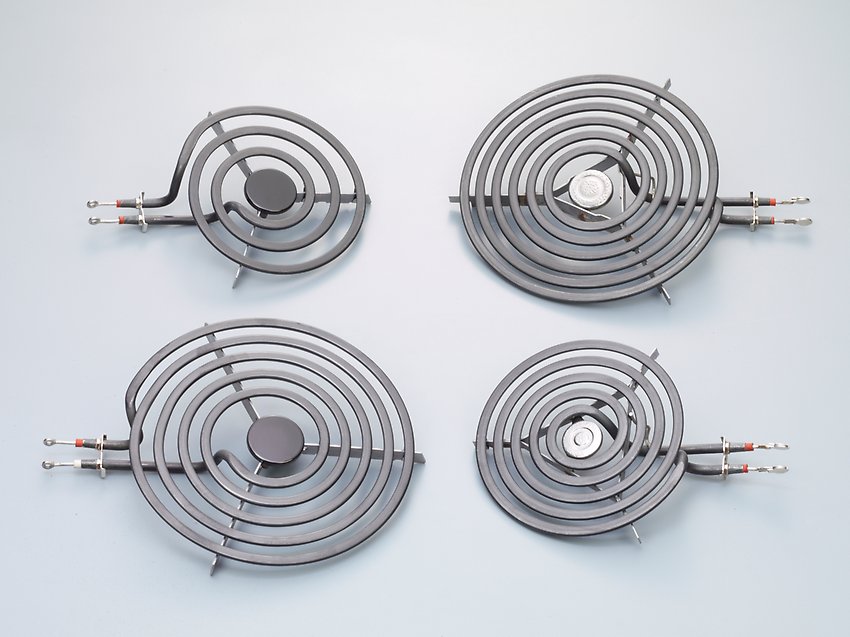

Our surface range elements consist of a spiral wound cooktop heating element with multiple turns with either a delta or y spider support assembly. The sheath material is Nickel based alloy stainless steel, the typical diameters are either six inch or eight inch, and both the voltage ratings and the wattage values can vary based on the application.


The number of the turns in the range surface element can vary from three, four, five, and six turn elements depending on the amount of wattage needed for the element’s performance. The higher the wattage needed the more turns there will be in the element.


The support legs that mount the element on the stove top have various designs and shapes and can be in a spider format or what appears to be the letter “Y”, a delta format or what appears to be a triangle, and other supports based on the appliance design.


There are multiple combinations on the range surface elements within the six inch diameter and the eight inch diameter sizes such as but not limited to the following: six inch three turn element, six inch four turn element, eight inch five turn element, and a eight inch six turn element.


The electrical connection is either a plug in type socket or a hard wired connection with threaded terminals. On the plug in type surface range element we offer both a wire loop connection or a flat blade connection to ensure a proper fit.


Our range surface elements can be ordered in several different varieties depending on what you require such as in bulk, individually boxed, with accessories and without accessories. Our accessories include rings, drip pans, combination bowls for both the traditional style appliances and other OEM style appliances.


In addition, we offer replacement medallions, the element plug in blocks, terminal blocks, adaptation kits to convert plug in elements to a hard wired connection, and the infinite temperature control knobs, infinite temperature control switches, or the entire infinite temperature control switch with knob assembly.


Backer-Springfield is a manufacturer of high-quality heating products and, as such, we are only setup to sell to resellers and O.E.M. manufacturers. We are unable to fulfill requests direct from consumers. If you are a consumer seeking a replacement element for your appliance, please contact the manufacturer of your appliance or your local professional service technician for information on the required heating element(s).
