EVAPOWAY™ Electric Condensate Evaporators

– Evaporate defrost and condensation where no drain line is available

ANTI CONDENSATION HEATERS

Backer Springfield's EVAPOWAY™ anti-condensate pans are used by leading companies in Commercial Refrigeration, HVAC, and Vertical Transportation (elevators). These durable and reliable products use the highest quality components, including NSF certified pans, to evaporate defrost and condensation where no drain line is available. Our products have successfully passed rigorous testing and are UL recognized in the USA and Canada.


The original electric condensate evaporator pan takes advantage of a traditional style element design that can reliably supply high wattage suitable for non-low flash point refrigerants. When activated by the float switch, the heating element with a wattage range from 200 watts to 3000 watts will provide the required heat into the application to eliminate condensation water.



Cabinet heaters

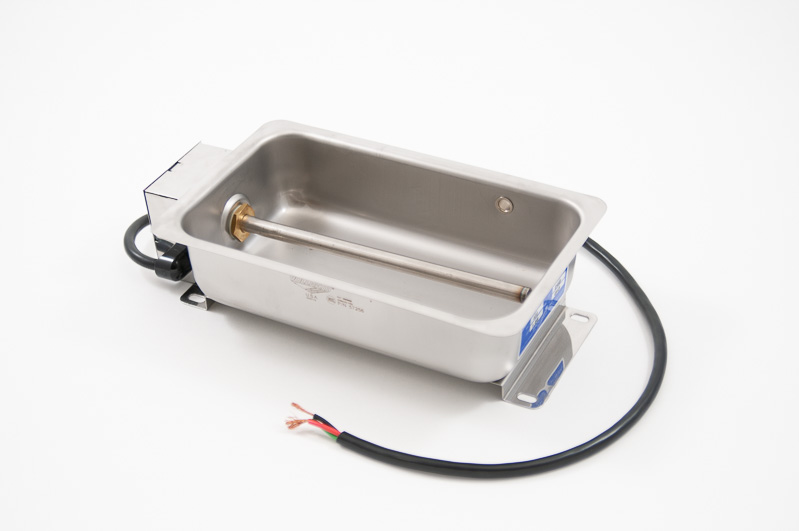

Tubular Anti-condensation pan

The positive thermal coefficient (PTC) electric condensate evaporator pan takes advantage of new technology that can reliably supply wattage at a lower level suitable for low flash point refrigerants. Wattage is constantly being provided at a reduced rate of approximately 10% of nominal value in open air as the resistance is self-regulated to a higher value with the higher sheath temperature. Once condensate water is introduced to the heating element wattage will be provided at the nominal value as the resistance is self-regulated to a lower value with the lower sheath temperature. There are four wattage levels available with the PTC designs which are 400 watts, 500 watts, 750 watts, and 1000 watts with the u-bend shape.

Cabinet heaters

Backer-Springfield is a manufacturer of high-quality heating products and, as such, we are only setup to sell to resellers and O.E.M. manufacturers. We are unable to fulfill requests direct from consumers. If you are a consumer seeking a replacement element for your appliance, please contact the manufacturer of your appliance or your local professional service technician for information on the required heating element(s).

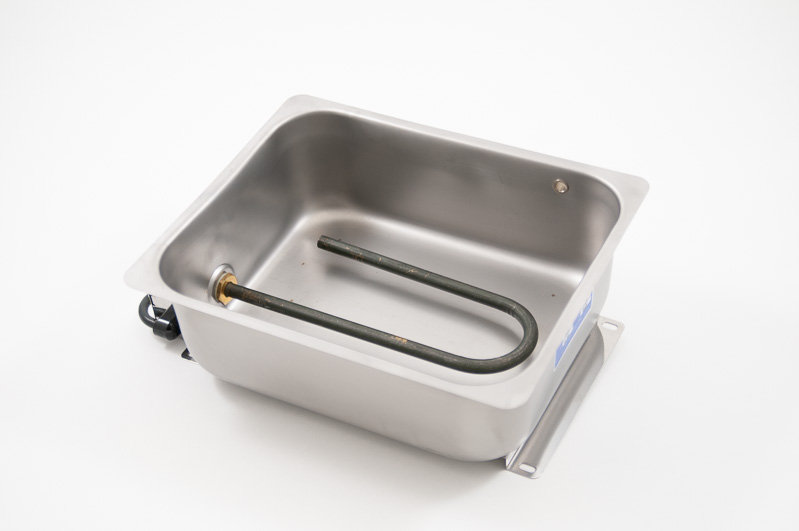

PTC Anti-condensation pan

Technical data

STANDARD TECHNICAL SPECIFICATIONS

The Evapoway condensate evaporator is available in five series and 21 different models to meet your exact dimensions and capacity requirements. Our advanced engineering and design capabilities offer customization for any system.

Tubular heating elements for liquid
Tubular heating elements for liquid

CUSTOMIZATION

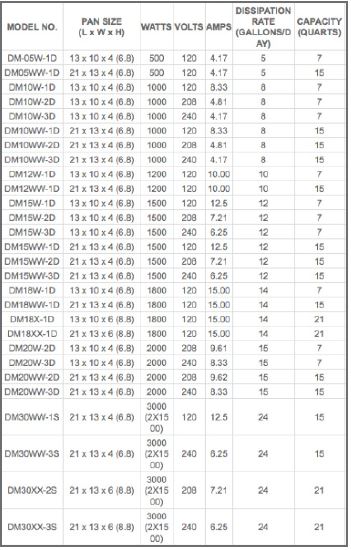

Rated Voltage -- 120 V , 208 V, 240 V
Rated Power -- 200 W - 3,000 W
Cord Lengths -- Many variations in length and terminations available
Dissipation rate -- 1.5 - 2.4 (gal/day)

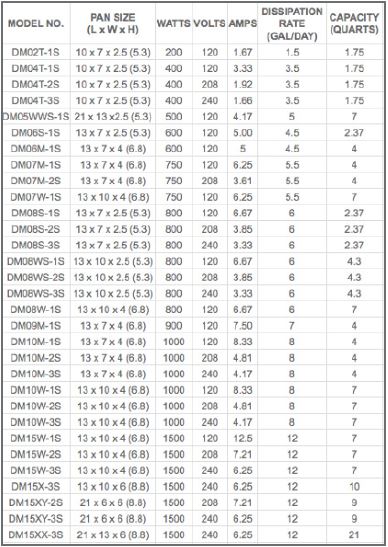

PTC TECHNICAL SPECIFICATIONS

LEAD WIRES AND TERMINATIONS


The power connections to the heater assembly can be provided by either splicing lead wires to or directly welding terminals on the cold pins. Multiple lead wire types and terminal pin options are available.

Tubular heating elements for liquid

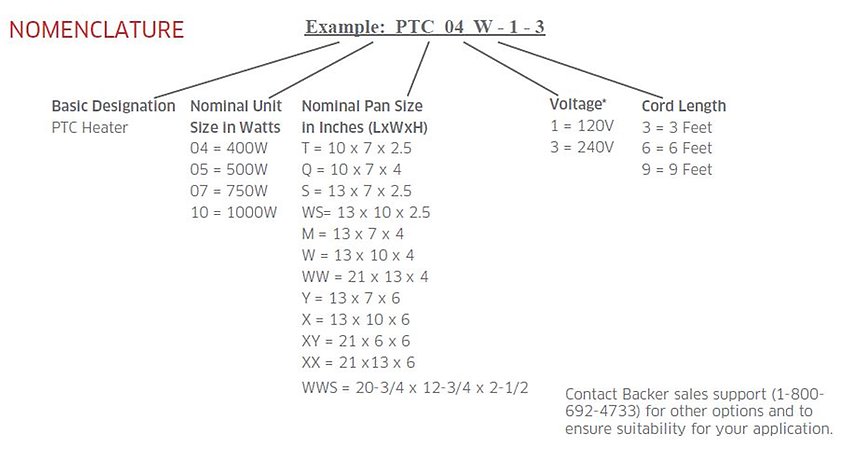

Available Constructions

Rated Voltage: 120V with plug ends
240V with stripped ends


Rated Power*: 400W, 500W, 750W, 1,000W
* nominal power rating in 100C water;
* tolerance =+5%; -20%



Cord Lengths: Standard cord lengths of 3’, 6’ or 9’



Standard Features

Condensate Pan: Heavy gauge SS with enhanced rust protection


Mounting Feet: 1/2” nominal height; slotted holes


Overflow Drain: 3/8” outside diameter; 5/8” length


Strain Relief: Electrical housing with cord damage protection



Dissipation Rates

400W - 3.5 gallons/day


500W - 4.0 gallons/day


750W - 5.5 gallons/day


1000W - 8.0 gallons/day



*Maximum rates shown - actual rates based on water temperature


Example applications

  • Commercial refrigeration units
  • Elevators
  • HVAC Units
  • Industrial Units
